Semi Anechoic EMC Chamber
DMC offers Semi Anechoic EMC Chamber at 3 meter, 5 meter and 10 meter test distance for Full Compliant EMC Emission and Immunity testing Commercial, Automotive, Military and Education sector and offers better performance for NSA, SVSWR and FU.

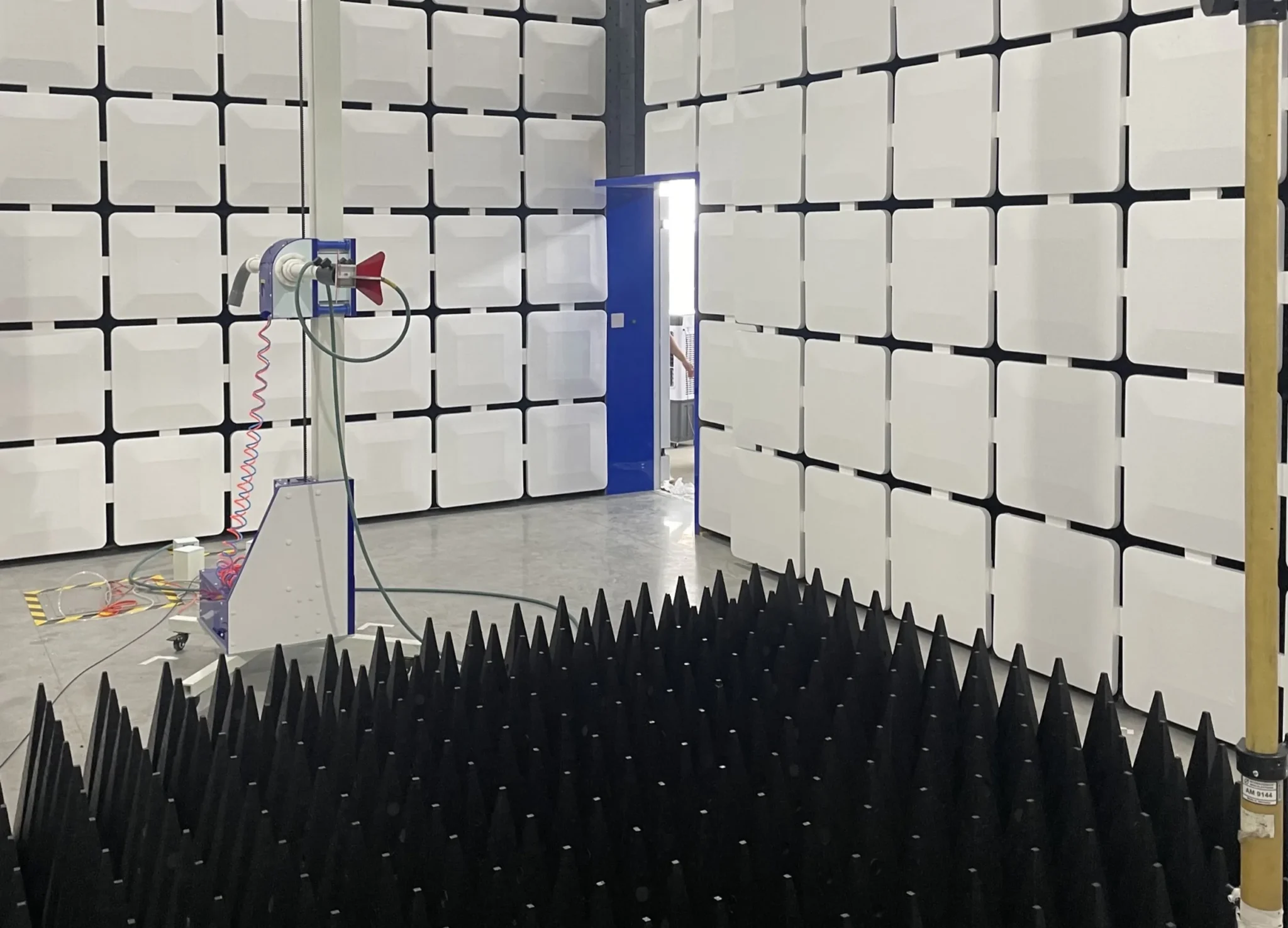

DMC-SAC-3M (3meter Semi Anechoic Compact EMC chambers)
DMC 3meter chambers are useful for both pre-compliance and Full-compliance emissions and compliant immunity testing with limited space availability in the host building. It provides test capability at 3 meter test distance with up to 2.0 meter quite zone and repeatable results. DMC 3 meter compliant test chambers has flexibility to provide custom solutions for different quiet zone requirements and performance options. This semi anechoic chamber is a multi-functional solution for full compliance testing as per various international EMC regulations DMC offers full turn-key solution for Radiated emission and Immunity including test instrumentation, software and Near field probes. EMC test standards covered : CISPR 11, CISPR 14, CISPR 15, CISPR 16, CISPR 22, CISPR 25 and CISPR 32 Fully compliant 3meter test condition Normalized site attenuation deviation (NSA) is better than ±3.5 dB between from 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz. EN/IEC 61000-4-3 fully compliant 3m test sit
Product Compliance Standard
| Emission | Immunity |
|---|---|
| CISPR 11 | IEC/EN 61000-4-3 |
| CISPR 14 | ISO 11452 |
| CISPR 15 | MIL-STD 461 |
| CISPR 25 | |
| CISPR 32 | |
| MIL-STD 461 |
Verification Standard
| Emission | Immunity |
|---|---|
| CISPR 16-1-4 | IEC/EN 61000-4-3 |
| and/or ANSI C63.4 |
Technical Specification
| Chamber Type | DMC-SAC-3M-S | DMC-SAC-3M-M | DMC-SAC-3M-L |
|---|---|---|---|
| External dimension | 8.5m x 5.8m x 5.2m (LxWxH) | 9.1m x 6.0m x 5.8m (LxWxH) | 9.5m x 6.5m x 6.0m (LxWxH) |
| Quiet Zone | ø1,2 m | ø1,5 m | ø2,0 m |
| Load capacity | 1500 Kg (Minimum), Higher load capacity option available | ||
| Frequency range | 30 MHz to 40 GHz | ||
Performance & Compliance
- Full Compliance Emission per ANSI C63.4 and CISPR-16
- Normalised site attenuation deviation (NSA) is better than ±3.5 dB between 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz.
- Full Compliant Immunity per IEC/EN 61000-4-3
- Field Uniformity deviation better than 6 dB at 75% of 16 measuring points from 26 MHz/ 80 MHz to 18 GHz
DMC-SAC-3M (3meter Semi Anechoic Compact EMC chambers)
DMC 3meter chambers are useful for both pre-compliance and Full-compliance emissions and compliant immunity testing with limited space availability in the host building. It provides test capability at 3 meter test distance with up to 2.0 meter quite zone and repeatable results. DMC 3 meter compliant test chambers has flexibility to provide custom solutions for different quiet zone requirements and performance options. This semi anechoic chamber is a multi-functional solution for full compliance testing as per various international EMC regulations DMC offers full turn-key solution for Radiated emission and Immunity including test instrumentation, software and Near field probes. EMC test standards covered : CISPR 11, CISPR 14, CISPR 15, CISPR 16, CISPR 22, CISPR 25 and CISPR 32 Fully compliant 3meter test condition Normalized site attenuation deviation (NSA) is better than ±3.5 dB between from 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz. EN/IEC 61000-4-3 fully compliant 3m test sit
Product Compliance Standard
| Emission | Immunity |
|---|---|
| CISPR 11 | IEC/EN 61000-4-3 |
| CISPR 14 | ISO 11452 |
| CISPR 15 | MIL-STD 461 |
| CISPR 25 | |
| CISPR 32 | |
| MIL-STD 461 |
Verification Standard
| Emission | Immunity |
|---|---|
| CISPR 16-1-4 | IEC/EN 61000-4-3 |
| and/or ANSI C63.4 |
Technical Specification
| Chamber Type | DMC-SAC-3M-S | DMC-SAC-3M-M | DMC-SAC-3M-L |
|---|---|---|---|
| External dimension | 8.5m x 5.8m x 5.2m (LxWxH) | 9.1m x 6.0m x 5.8m (LxWxH) | 9.5m x 6.5m x 6.0m (LxWxH) |
| Quiet Zone | ø1,2 m | ø1,5 m | ø2,0 m |
| Load capacity | 1500 Kg (Minimum), Higher load capacity option available | ||
| Frequency range | 30 MHz to 40 GHz | ||
Performance & Compliance
- Full Compliance Emission per ANSI C63.4 and CISPR-16
- Normalised site attenuation deviation (NSA) is better than ±3.5 dB between 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz.
- Full Compliant Immunity per IEC/EN 61000-4-3
- Field Uniformity deviation better than 6 dB at 75% of 16 measuring points from 26 MHz/ 80 MHz to 18 GHz
DMC-SAC-3M (3meter Semi Anechoic Compact EMC chambers)
DMC 3meter chambers are useful for both pre-compliance and Full-compliance emissions and compliant immunity testing with limited space availability in the host building. It provides test capability at 3 meter test distance with up to 2.0 meter quite zone and repeatable results. DMC 3 meter compliant test chambers has flexibility to provide custom solutions for different quiet zone requirements and performance options. This semi anechoic chamber is a multi-functional solution for full compliance testing as per various international EMC regulations DMC offers full turn-key solution for Radiated emission and Immunity including test instrumentation, software and Near field probes. EMC test standards covered : CISPR 11, CISPR 14, CISPR 15, CISPR 16, CISPR 22, CISPR 25 and CISPR 32 Fully compliant 3meter test condition Normalized site attenuation deviation (NSA) is better than ±3.5 dB between from 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz. EN/IEC 61000-4-3 fully compliant 3m test sit
Product Compliance Standard
| Emission | Immunity |
|---|---|
| CISPR 11 | IEC/EN 61000-4-3 |
| CISPR 14 | ISO 11452 |
| CISPR 15 | MIL-STD 461 |
| CISPR 25 | |
| CISPR 32 | |
| MIL-STD 461 |
Verification Standard
| Emission | Immunity |
|---|---|
| CISPR 16-1-4 | IEC/EN 61000-4-3 |
| and/or ANSI C63.4 |
Technical Specification
| Chamber Type | DMC-SAC-3M-S | DMC-SAC-3M-M | DMC-SAC-3M-L |
|---|---|---|---|
| External dimension | 8.5m x 5.8m x 5.2m (LxWxH) | 9.1m x 6.0m x 5.8m (LxWxH) | 9.5m x 6.5m x 6.0m (LxWxH) |
| Quiet Zone | ø1,2 m | ø1,5 m | ø2,0 m |
| Load capacity | 1500 Kg (Minimum), Higher load capacity option available | ||
| Frequency range | 30 MHz to 40 GHz | ||
Performance & Compliance
- Full Compliance Emission per ANSI C63.4 and CISPR-16
- Normalised site attenuation deviation (NSA) is better than ±3.5 dB between 30MHz to 1 GHz sVSWR deviation better than ±5.5 dB from 1 GHz to 18 GHz.
- Full Compliant Immunity per IEC/EN 61000-4-3
- Field Uniformity deviation better than 6 dB at 75% of 16 measuring points from 26 MHz/ 80 MHz to 18 GHz
