Hemi Anechoic Acoustic Chamber

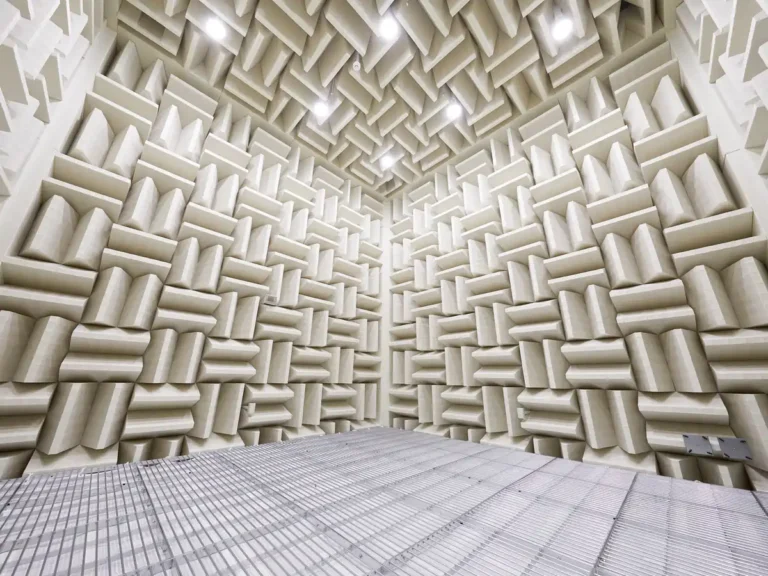

A constructed hemi-anechoic chamber serves as an environment for measuring noise, particularly for assessing the acoustic power levels of equipment and machinery. Its assembled using Sola metal panels & frames. The interior is made up of non-combustible sound-absorbing wedges. this hemi anechoic chamber allows for easy disassembly and transportation since it doesn’t involve concrete walls. We offer the flexibility to create customized structures tailored to specific measurement purposes and layouts.
Measurement Target
Precision equipment, automobile parts, electronic parts, nano technology related products, environment-related products, etc.
Measurement Purpose
Sound power level, sound intensity measurement, abnormal noise inspection, product performance acoustic measurement, etc.
Measuring Equipment
Ordinary, precision sound level meter, FFT analyzer, vibration meter, various acoustic evaluation equipment, etc.
Anechoic Test Box Dimension
| MODELS | INWARD (MM) | OUTWARD (MM) |
|---|---|---|
| DMC-85 | W400 X L450 X H400 | W850 X L850 X H850 |
| DMC-1050 | W600 X L650 X H600 | W1050 X L1050 X H1050 |
| DMC-1250 | W800 X L850 X H800 | W1250 X L1250 X H1250 |
| DMC-1450 | W1000 X L1050 X H1000 | W1450 X L1450 X H1450 |
Sound Insulation (Transmission Loss)/dB
| Hz | 31.5 | 63 | 125 | 250 | 500 | 1K | 2K | 4K | 8K |
|---|---|---|---|---|---|---|---|---|---|
| Sound Insulation Guarantee Value | -24 | -34 | 39 | 43 | 51 | 55 | 63 | 64 | 62 |
| Actual Value | 29.1 | 46.2 | 44.9 | 44.7 | 61.8 | 64.1 | 71.7 | 75.6 | 80.1 |
Anechoic Test Box Features
-
Sound Absorption & Insulation
Incorporates AST sound absorption material and a back sound absorption layer for superior acoustic performance. Features a double shield sound insulation door with perimeter sound absorption.
-
Utilities & Accessories
Our anechoic test boxes utilizes a utility pipe with an inner diameter of 55 in two locations. Includes four M8 hanging hooks for convenient placement.
-
Table & Handling Mechanisms
The sample table is made of Steel T4.5 and includes a sound-absorbing mat for added functionality. Equipped with a closed handle, operating handle, and die-cast leaf hinge.
-
Base & Support Features
The dedicated base is height-adjustable, providing versatile positioning. Four-point vibration isolation pads enhance stability and support.
-
Mobility & Adjustment
Incorporates adjusters and casters for easy mobility. Features an eyebolt M20-24 for additional support.
-
Finishing & Customization
Includes a sealing gasket for enhanced performance. Offers baked painting in a standard silver color or a color of your specification for a personalized touch.
